Pipelines play an important role in the national/international transportation of natural gas, petroleum products, and other energy resources. Pipelines are set up in different environments and consequently suffer various damage challenges, such as environmental electrochemical reaction, wielding defects, and external force damage, etc. Defects like metal loss, pitting and cracks destroy the pipeline’s integrity and cause serious safety issues. This should be prevented before it occurs to ensure the safe operation of the pipeline.
The magnetic flux leakage (MFL) is monitored by magnetic sensors around the circumference to estimate the dimensions and types of the defects. Although the phenomenon of magnetic flux leakage is easy to understand, the design and analysis of the MFL system involve the complex interaction of excitation, flux leakage, and material with defects. As a classical NDT method, much work has been done already.
MFL sensors typically consist of a permanent magnet and a sensor coil, which are placed on opposite sides of the material being tested. The permanent magnet generates a magnetic field within the material. If there are any imperfections or anomalies in the material, they will disrupt the magnetic field and cause a leakage of magnetic flux. Leakage of magnetic flux is then detected by the sensor coil, allowing the presence and location of anomalies in the material to be determined.

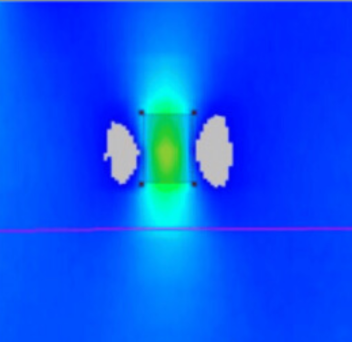

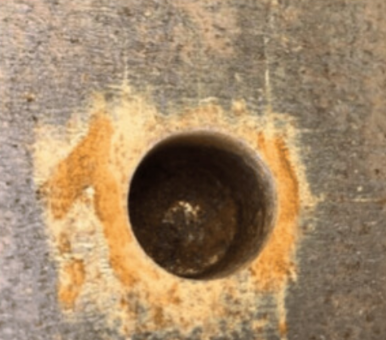

Pipeline defect and MFL image. (a) Real defect. (b) MFL curves for defect. (c) Pseudo-color image.
